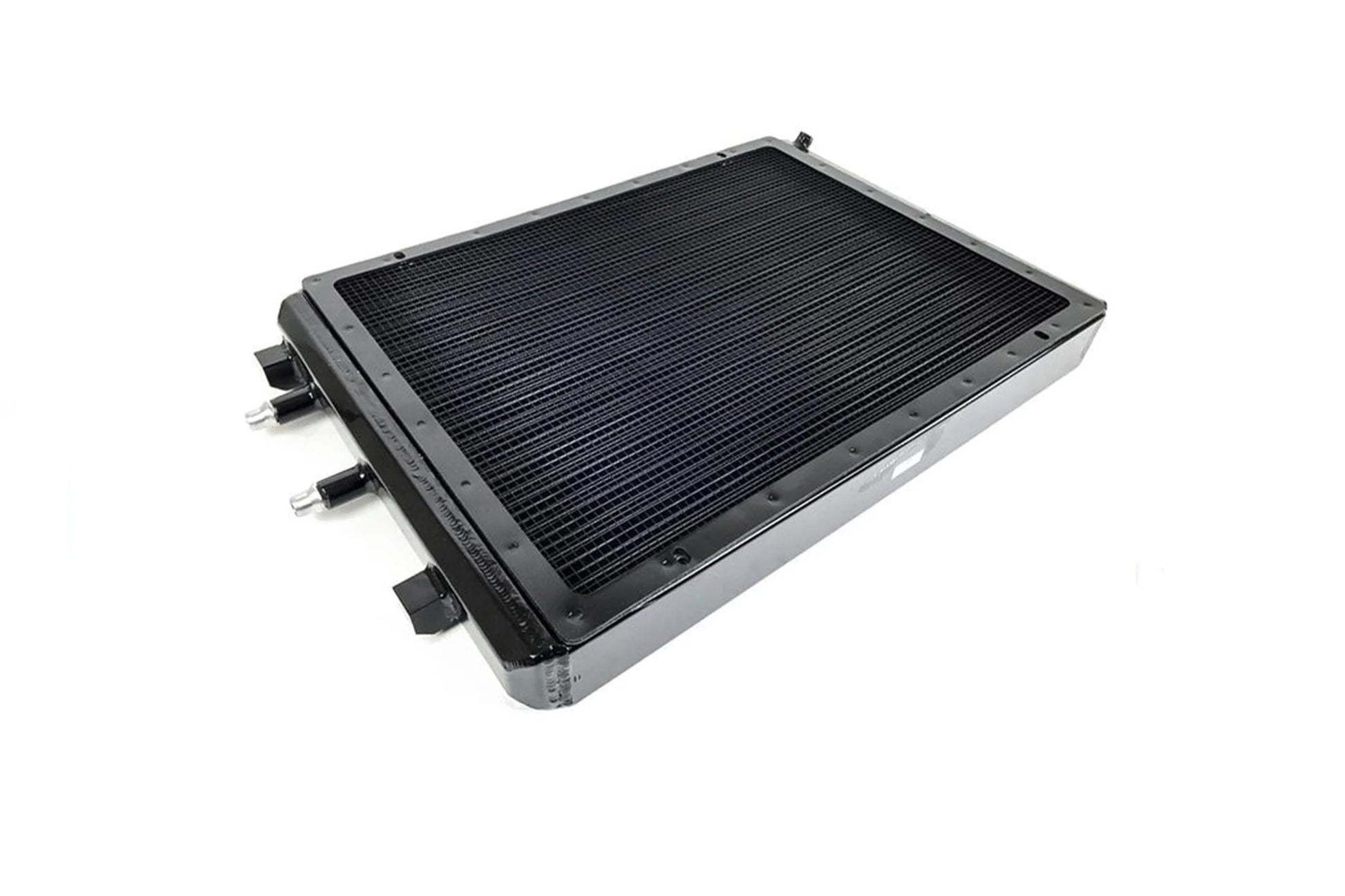

CSF Front Mount Heat Exchanger - BMW F80 M3 | F82 | F83 M4 | F87 M2 Competition

Description

• 2-row 42mm core (dual core) featuring CSF’s exclusive B-tube technology
• Core features an ultra-efficient fin with 6.5mm fin height and multi-louvered design for maximum surface area contact
• Dual-pass flow structure allows the coolant to flow across the core of the radiator 2 times before exiting the radiator for the lowest outlet temperature possible (OEM style design)
• CNC machined, OEM style “quick-connect” inlet/outlet connections
• CNC machined, OEM style mounting brackets & fittings for superb fit and durability
• Includes removable aluminum rock guard
• All-aluminum race style drain plug
• 1 hour “mirror finish” hand polish
• “Drop-in fit” requiring no modifications to install. Accepts all attaching OEM components including “quick-connect” hoses, mounting brackets, OEM X-brace, and all air ducting/shrouding.
  • CSF #8075 – 45 row design – no modifications necessary
  • CSF #8075R – 50 row ultimate race-spec design (limited availability)
    • Requires some modification including trimming to bottom side of upper core support.
• Life-time warranty
