Wagner Competition Intercooler Kit - Mini F54 | F55 | F56 | F57 | F60
Fitting Available - Please email info@mrvanos.com for a quote.
Description
Competition intercooler upgrade kit plug and play suitable for:
Mini Cooper S F54/F55/F56/F60 Engine Code: B46 & B48 (141KW/192PS) 2014+
Mini One D F54/F55/F56 Engine Code: B37 (70KW/95PS) 2014+
Mini Cooper D F54/F55/F56 Engine Code: B37 (85KW/116PS) 2014+
Mini Cooper SD F54/F55/F56 Engine Code: B47 (125KW/170PS) 2014+
Mini JCW F57 MKB:B48B20 (170KW/231PS) 2016+
Does not fit for JCW Edition of models F54/55/56/60
Does not fit for engine codes B48.C / B48.A / B38.C / B38.B (LCI-models)

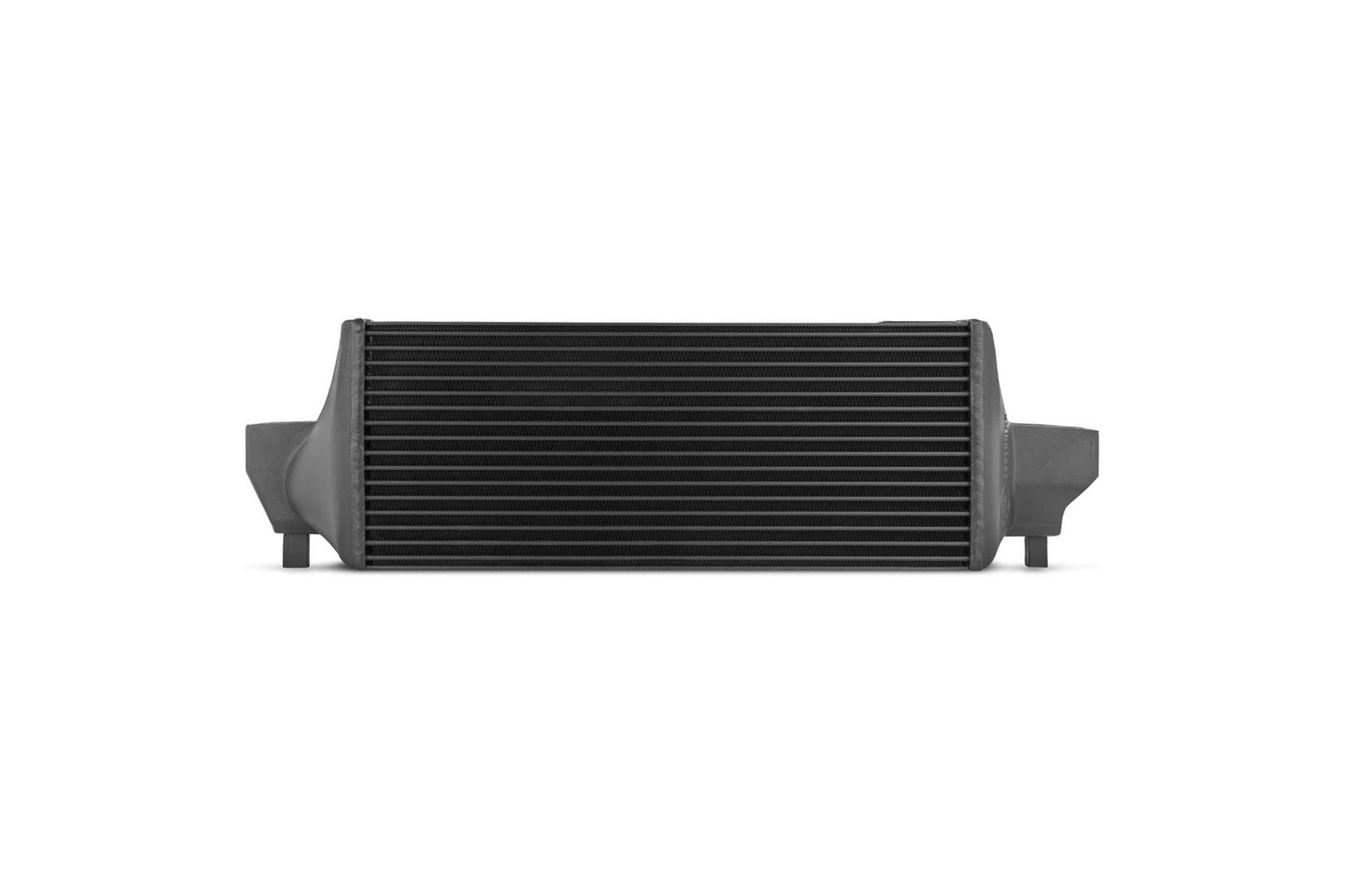

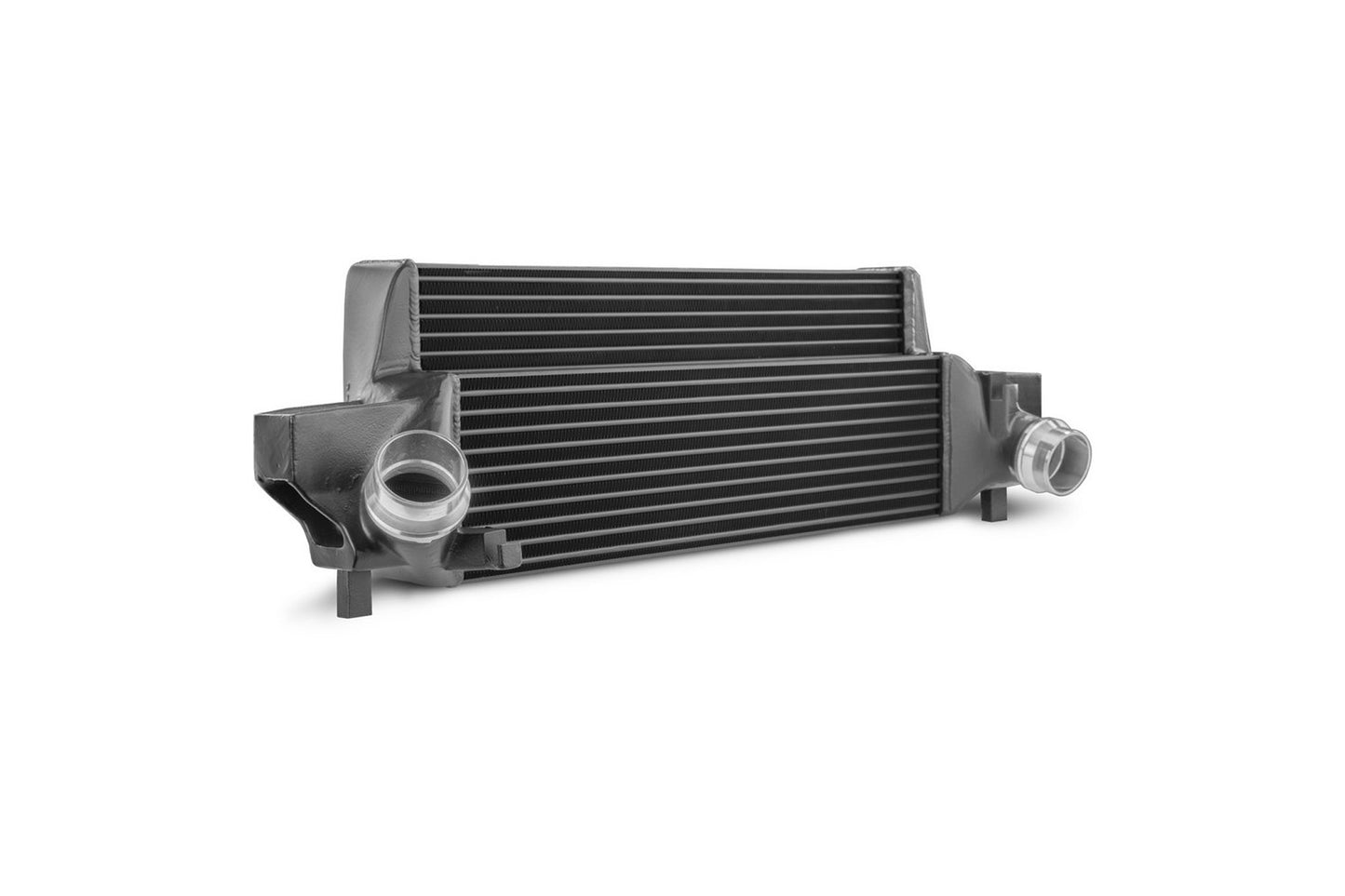

The Competition Intercooler has the following core size (580mm x 231mm x 110mm [stepped] = 12.600cm³), providing a 53% larger frontal area and 52% more volume compared to the original intercooler. Our engineers have increased the intercooler core size and efficiency, as well as improved the endtank design to remove any OEM bottlenecks, resulting in increased flow rating and charge cooling properties. Competition Intercooler Core with turbulators (weight: 9,2kg). Constructed of the highest quality Tube and Fin intercooler cores combined with cast aluminium optimised by CAD. Flow analysis and simulations were created to optimise the design for best possible internal airflow. This intercooler is the best choice when it comes to performance gains and low intake temperatures. A lot less pressure drop then OEM Intercooler. Anti corrosion protective coating with perfect thermal heat dissipating character. Optimal cooling with clearly more power. Kit is ready for installation (plug & play), using the stock pipework. No cutting required. Fitment is easy, replacing the OEM intercooler. All of our products undergo rigorous quality control.
Dimensions stock Intercooler:
585mm x150mm x 95mm V=8,3 Liter A=877,5 cm²
Dimensions WAGNERTUNING Intercooler:
580mm x 231mm x110mm /stepped V=12,6 Liter A=1340 cm²

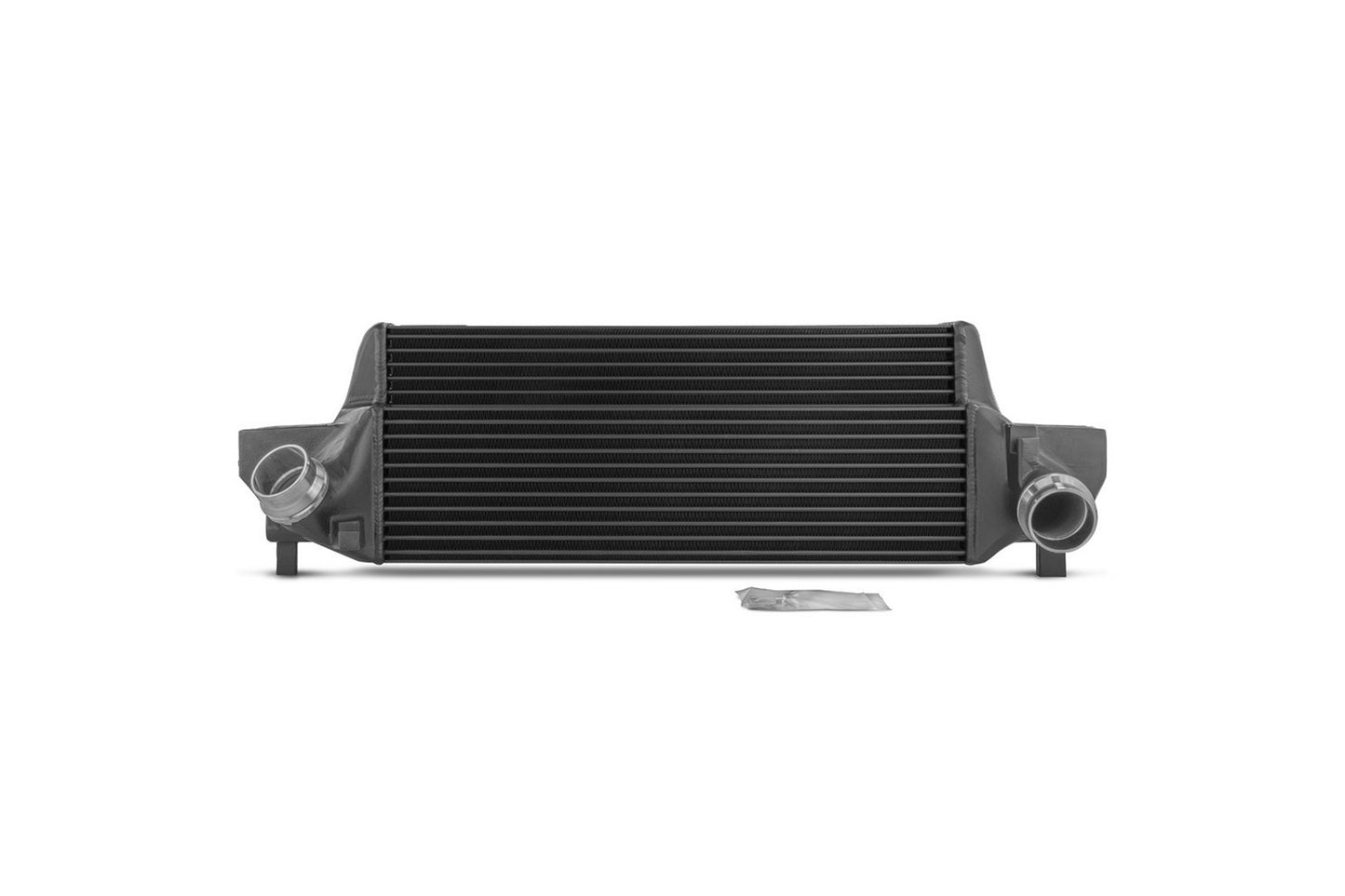

Packing list: 1 intercooler painted black, 1 mounting material, 1 installation instruction
