Wagner Competition Intercooler Kit - Mini F54 | F56 | F60 JCW
Fitting Available - Please email firstname.lastname@example.org for a quote.
Competition Intercooler Kit for Mini Cooper S John Cooper Works (GP)
COMPETITION INTERCOOLER KIT MINI COOPER S F54/56/60 JCW (GP) - (170KW/231HP) 2015-12/2018 * fits only for B46 and B48 engine code (do not fit in Mini F57 and cars with B48.D engine code)

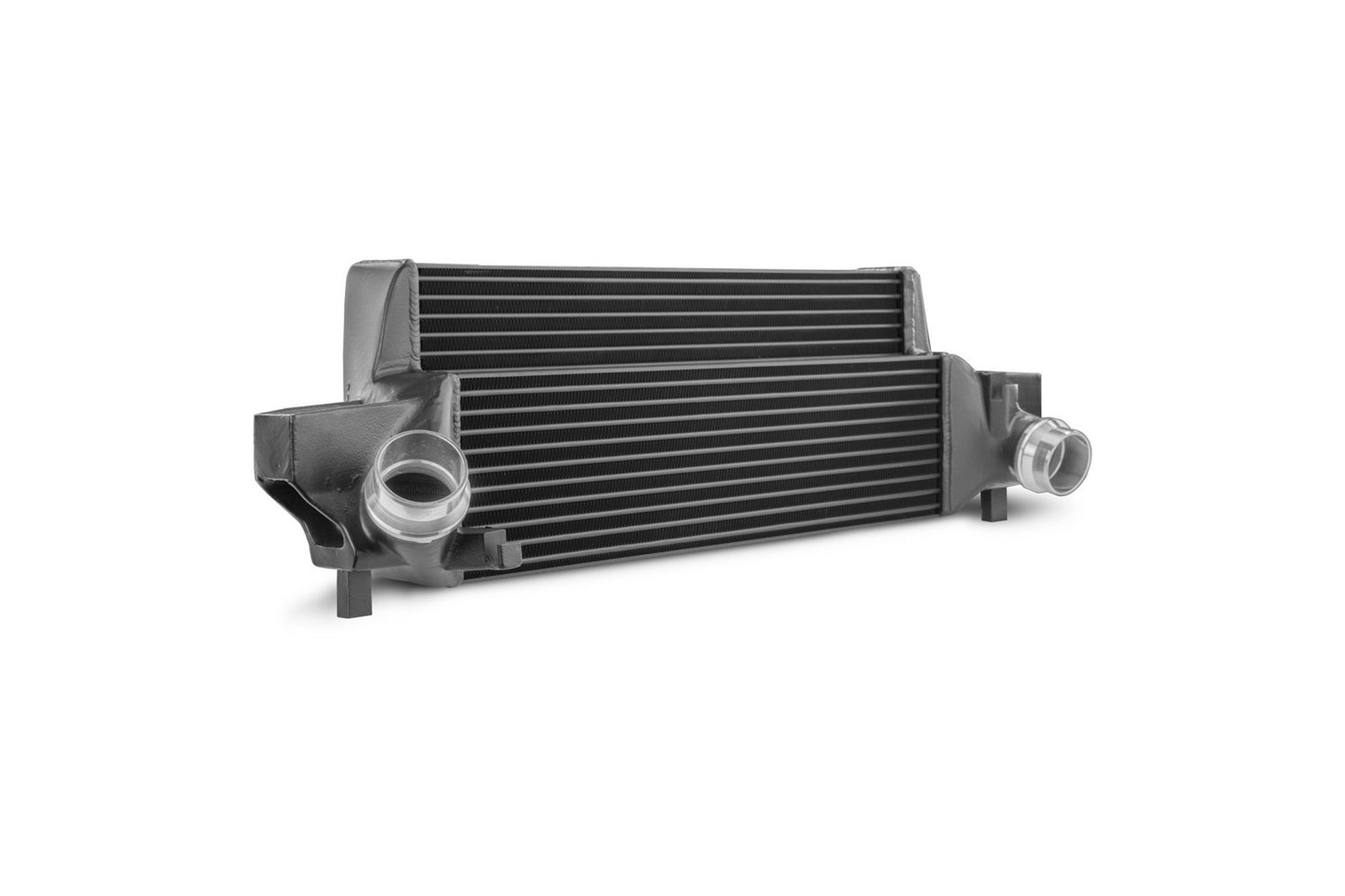

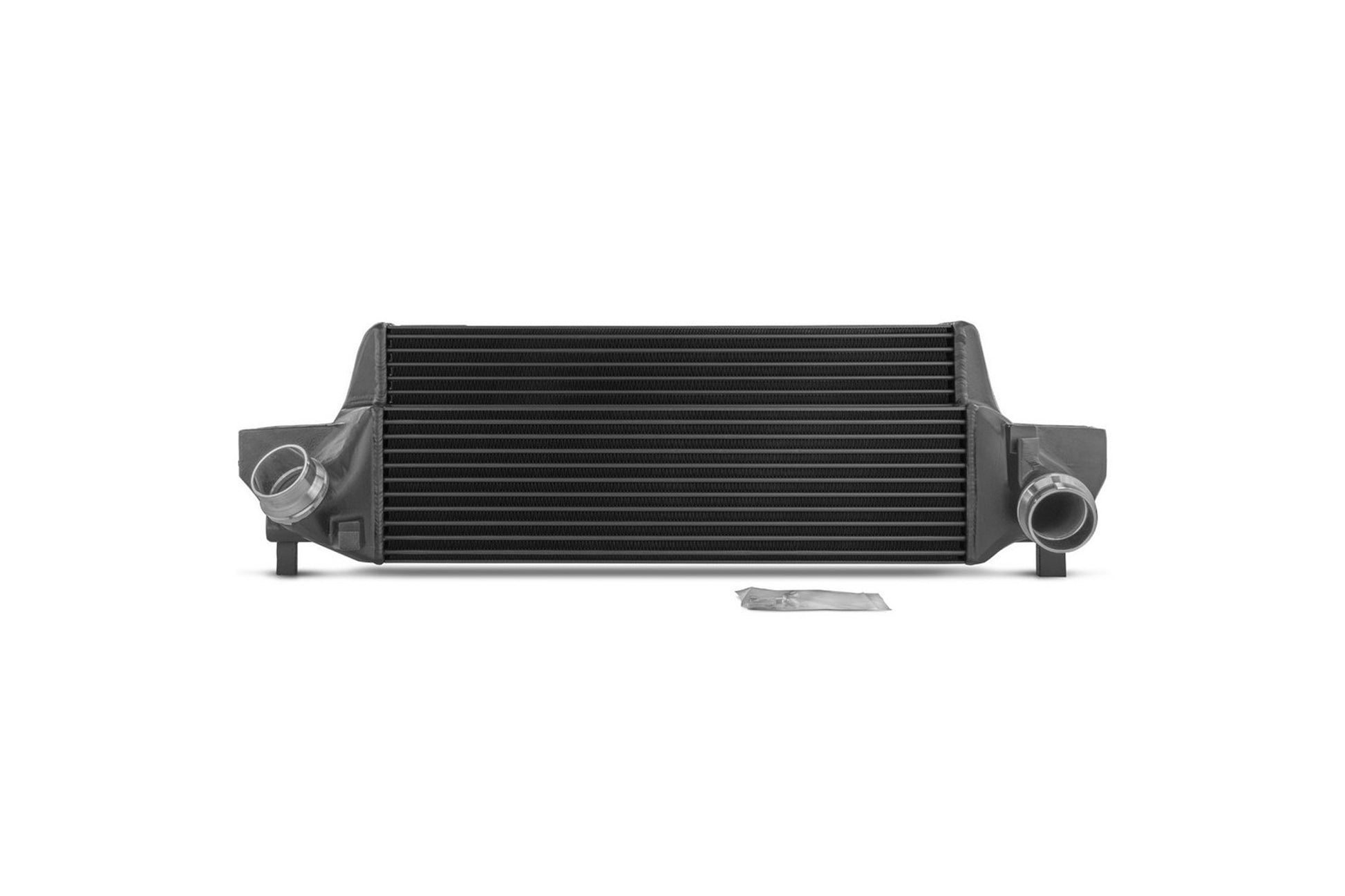

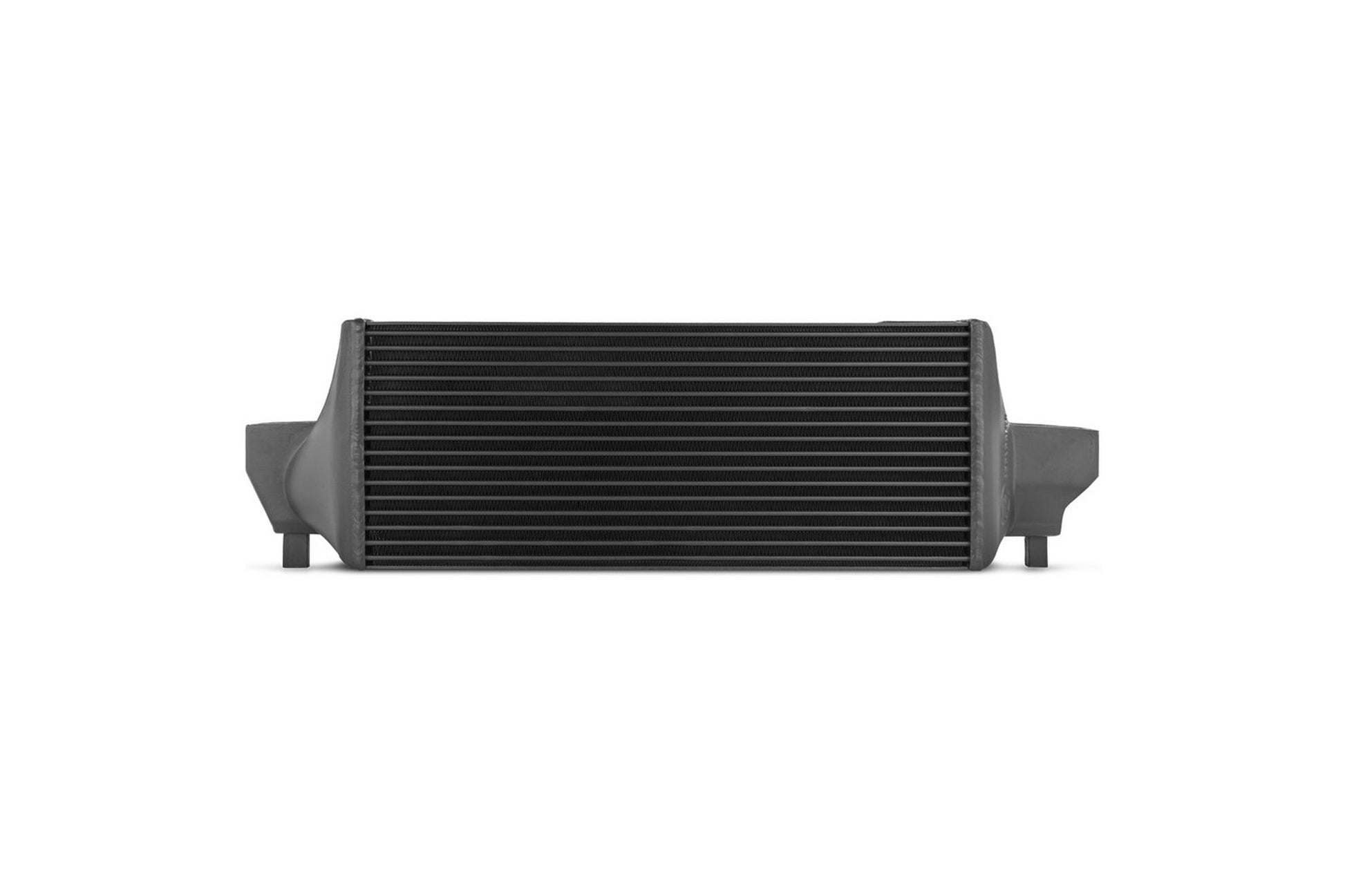

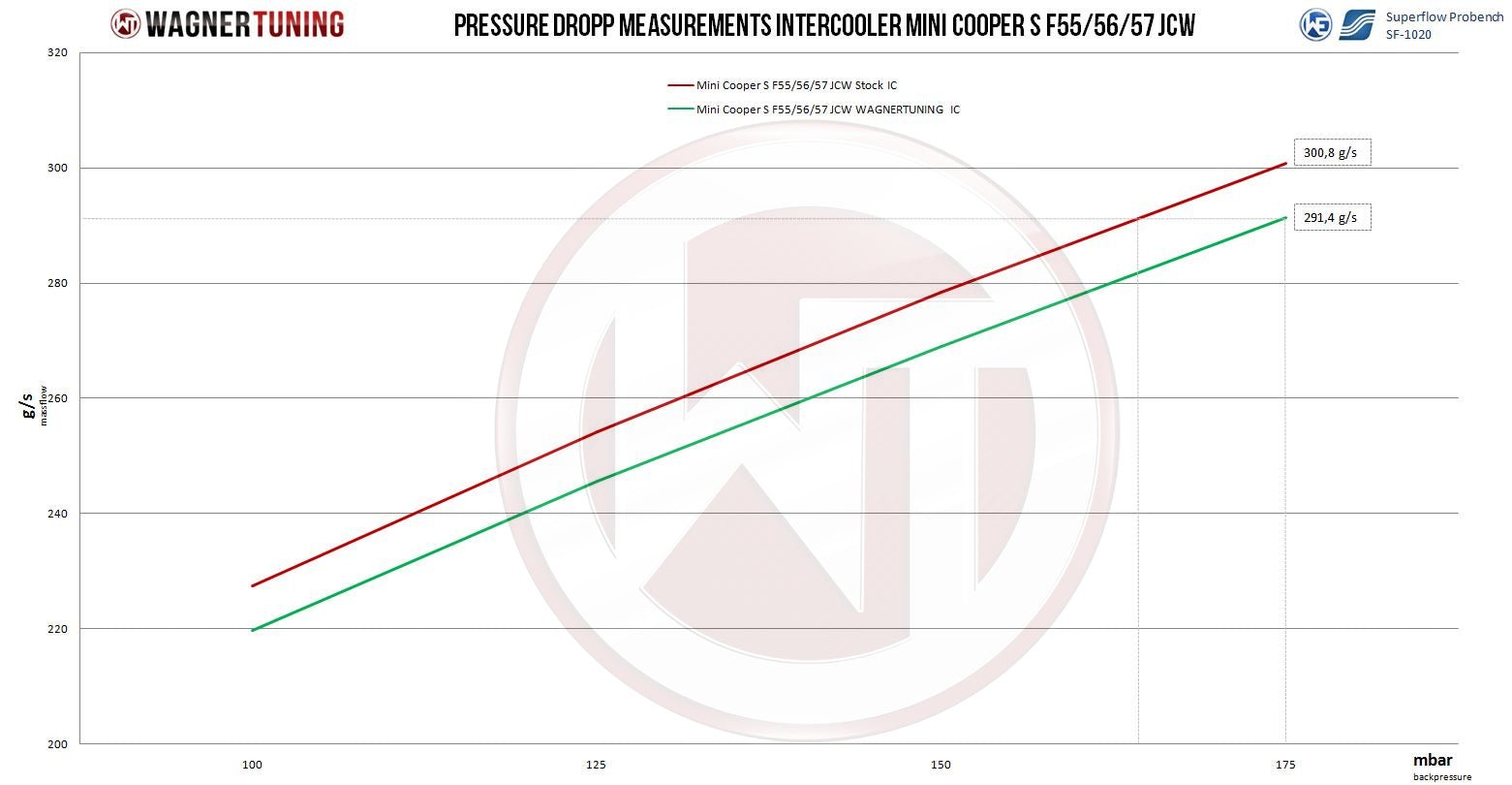

Item no.: 200001089 The competition intercooler kit has the following core dimensions (590mm x 225mm x 145mm [stepped] = 16,6L / 23,23Inch x 8,86Inch x 5,71Inch [stepped] = 1012,99Inch³ ) The high performance intercooler core provides a 30% larger frontal area and 47% more volume compared to the stock intercooler. Our engineers have increased the intercooler core size and efficiency, as well as improved the end tank design to remove any OEM bottlenecks, resulting in increased flow rating and charge cooling properties. Despite of it´s size the weight of the complete intercooler is only 9,65kg. Constructed of the highest quality Tube and Fin intercooler cores with inside turbulators combined with cast aluminium end tanks optimised by CFD for best possible internal airflow. A lot less pressure drop then stock intercooler. Maximum cooling performance with clearly more power. Anti corrosion protective coating with perfect thermal heat dissipating character. Ready for installation (plug & play), only replacing the stock intercooler.
All of our products undergo rigorous quality control.
Dimensions stock intercooler:
585mm x150mm x 95mm / 23,03Inch x 5,9Inch x 3,74Inch V=8,3 Liter / 506,5Inch³ A=87.750 mm² / 136,01Inch²
Dimensions WAGNERTUNING intercooler:
590mm x 225mm x145mm /stepped / 23,23Inch x 8,86Inch x 5,71Inch V=16,6 Liter / 1012,99Inch³ A=132.750 mm² / 205,76Inch²
Kit comes with: 1 intercooler, 1 mounting material, 1 installation instruction
